Reporting "Automotive Engineering Exposition 2019 Yokohama" with many thanks for coming

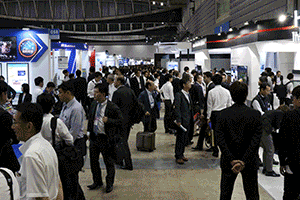

Together with Japan National Instruments Corporation, we exhibited in "Automotive Engineering Exposition 2019 Yokohama" held in Pacifico Yokohama for Wednesday May 22nd to Friday 24th 2019.
We mainly exhibited smart machine development platform using our USB3.0 camera of BU series in our booth. We had so many visitors.
Thank you very much for visiting us.
Description of exhibition system
We explain the whole of our exhibition system etc.
Overview
Images from our USB3.0 camera and surveillance network camera are displayed and recorded as video in video management software on PC.
During this, as USB3.0 camera outputs the signal in USB3 Vision protocol, it is connected to network line through FA-TRANSCODER in order to much the protocol of network camera.
Connecting these 2 cameras to the same network, image will be taken in.
At the same time, signal from accelerometer is taken in PC through National Instruments Corporation’s signal input module.
Information such as vibration gained by sensor is recorded by logger software in real time.
Synchronizing time line of image and sensor signal, image at the time when the sensor detected abnormality can be checked back.
Description of the shot image;

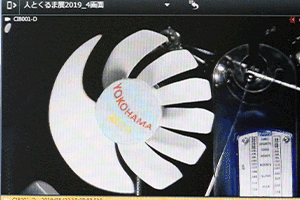

Image by Surveillance network camera. Shooting an object in quick motion, the image might distort as it is shot with rolling shutter method.

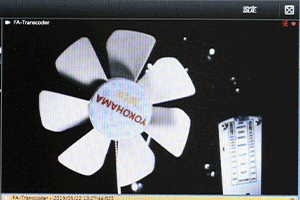

Image by industrial camera. An object can be shot precisely even if it is in quick motion because it is shot with global shutter method.
Advanced features
- Cen monitor a factory status
- Useful for productivity improve and predictive maintenance
- Can shoot image of an object in high speed motion
- Easy to build application with FlexLogger

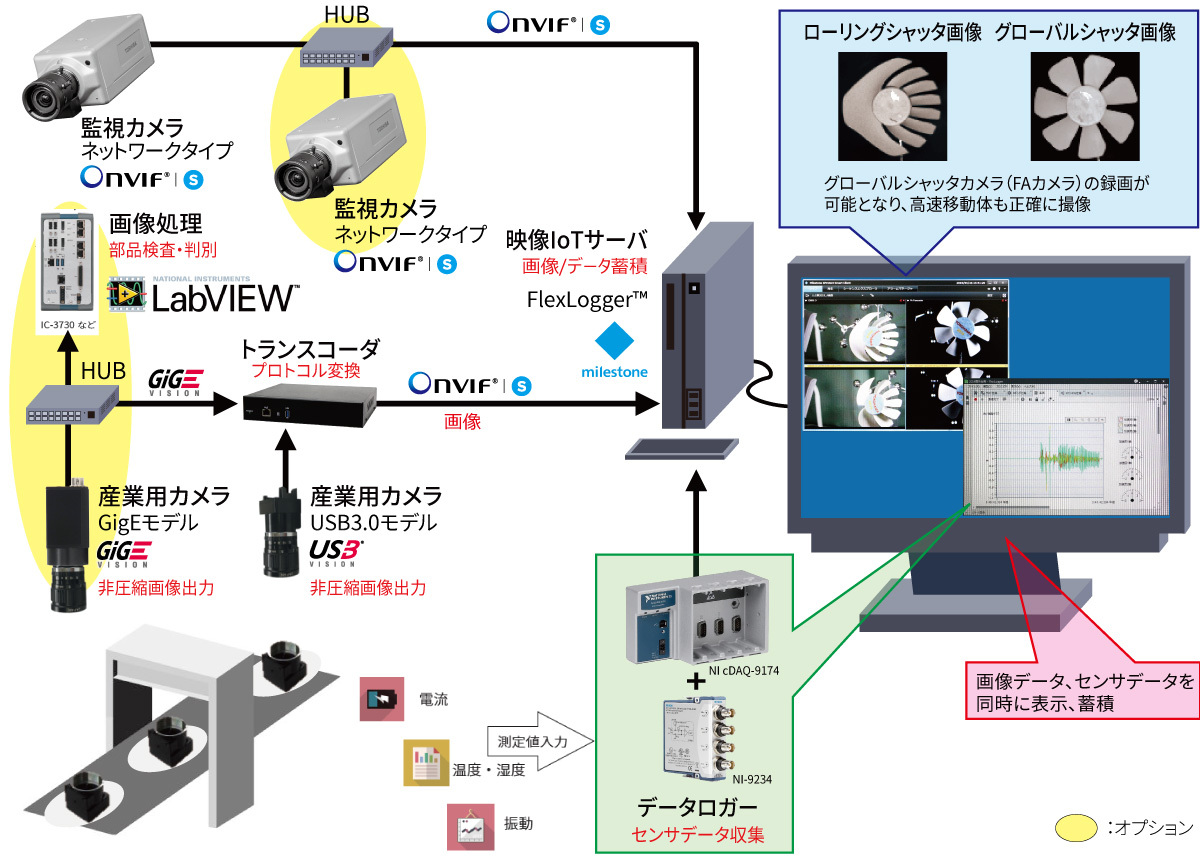

System connection example
- Monitoring system on production line
- Inter facility monitoring system
- Machine tool control with vision
- Collection of predictive maintenance data

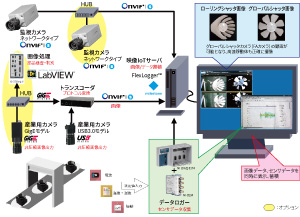

System connection example
Click here for larger image
Introduction of exhibits
We introduce each exhibit of ours one by one.
Our exhibits

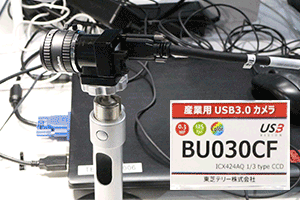

- USB3.0 / USB3 Vision camera：
BU030CF - Network camera for surveillance: CI8001-D
- Protocol converter: FA-TRANSCODER (reference exhibition)
- Video management software: Milestone XProtect
Products provided by National Instruments Japan Corporation
- Signal input module: NI-9234
- USB backplane with 4 slots: cDAQ-9174

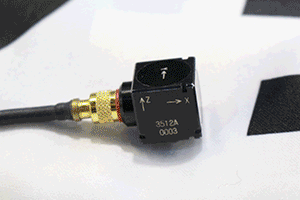

- Accelerometer
- Logger software: FlexLogger
- FlexLogger is trademarks of National Instruments.
- USB3 Vision and GigE Vision are trademarks of A3 (Association for Advancing Automation).
- All brand name or logo are trademarks or registered trademarks of their respective companies.
Information including product specifications, content of services and contact information, is current on the date of the press announcement, but is subject to change without prior notice.
